COB LED Strip Light

Seamless Linear Lighting Solution

Why Choose COB LED Strip for Your Project

COB vs Traditional SMD Strips

Comparison is for general reference. Product performance may vary by configuration.

Aspect	COB LED strips	Traditional SMD strips
Light appearance	Smooth, continuous line, no visible dots.	Visible individual LEDs and dotted effect.
Uniformity	Very uniform, minimal hotspots or shadows.	More risk of hot spots and uneven areas.
Beam angle	Around 180° wide coverage.	Typically around 120–140°.
Brightness&density	Higher chip density and lumens per meter.	Lower density at same length.
Heat management	Better thermal performance and reliability.	Varies, often less efficient.

COB LED Strip Light Key Features

Dot-free Illumination

High CRI >90 to 98

Flexible Soft Design

Multi CCT 1800K-6500K

Wide PCB 5-15mm

Custom Voltage 5/12/24/48/110/220V

Technical Specifications

LEDs/m	FPCB Width/mm	Power/m	Voltage (V)	mini. cut /mm	CRI	LM/W	Length/Roll
300/m	8/10mm	8/10W	12/110V	500mm/1cm	90	80-100lm	5/50/100m
320/m	8/10mm	8/10/14W	5/12/24V	25/50mm	90	80-110lm	5m
480/m	2.8/4/5/8/10/12mm	4/6/10/12W	5/12V/24/48V	25/50mm	90/95	80-140lm	5/25m
384/m	5/8mm	6/10W	12V/24V	25/31.25/41.66mm	90	90-100lm	5m
512/m	8/10mm	10/14W	24V	62.5mm	90	90-120lm	5m
528/m	10mm	14W	12/24V	45.45mm	90	90-110lm	5m
432/m	10mm	12W	220V	166.66mm	90	80-90lm	50/100m
296/m	10mm	10W	220V	500mm	80	90-100lm	50/100m
280/m	12mm	7W	110V 220V	250mm 500mm	80	80-90lm	50/100m
240/m	12mm	7W	220V	100mm	80	80-90lm	50/100m

COB LED Strip Product Gallery

Our LED strip products support multiple configurations and OEM customization options.
For detailed specifications, drawings, and customized solutions, please contact our sales team directly.

Applications of COB LED Strip

COB LED strip lights are suitable for retail, hospitality, office, cabinet, and architectural lighting applications where uniform, dot-free illumination is required.

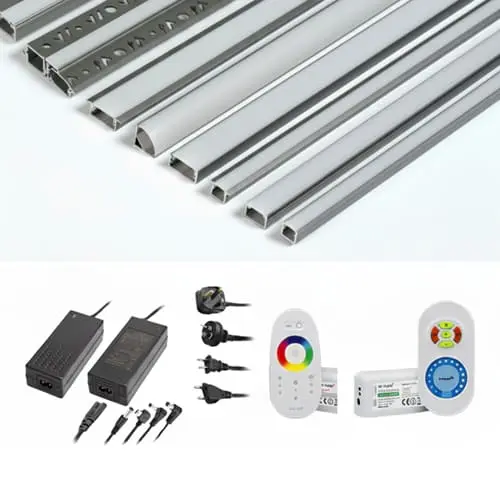

System Compatibility

Customization Options

Customization is available based on project requirements and technical feasibility.

CCT & CRI Selection

LED Density & Power

Custom PCB Width & Length

IP Rating & Silicone Extrusion

Logo & Private Labeling

Mounting & Control Methods

Certifications & Compliance

We design our LED strip products to meet international safety and environmental standards. certificates are available upon request and may vary by product model.

Need certificates for your project submission?

FAQ – Frequently Asked Questions

Do you offer off-the-shelf LED strip models?

Our LED strip products are mainly project-based and customized according to application requirements. Standard specifications are available for reference, but final configurations are usually confirmed per project.

What is the MOQ?

MOQ depends on the product type and customization scope. For most projects, we aim to balance flexibility with production efficiency. Please contact us to discuss your project details.

Can your LED strips work with our existing drivers and control systems?

Our LED strips are compatible with most standard LED drivers and common control protocols such as DALI, 0–10V, and PWM, depending on product configuration.

Are certifications available for project approval?

Relevant certifications such as CE and RoHS are available upon request and may vary by product model and configuration.

What is your typical lead time for customized orders?

Lead time varies based on product type, customization level, and order volume. We will confirm production schedules after final specifications are approved.
